The Affordable Merits E604 Curved Stair Lift sold by BILD, Milwaukee.
Let’s Get Started
Return to Stair Lifts Main Page
Compare Curved Stair Lift Options

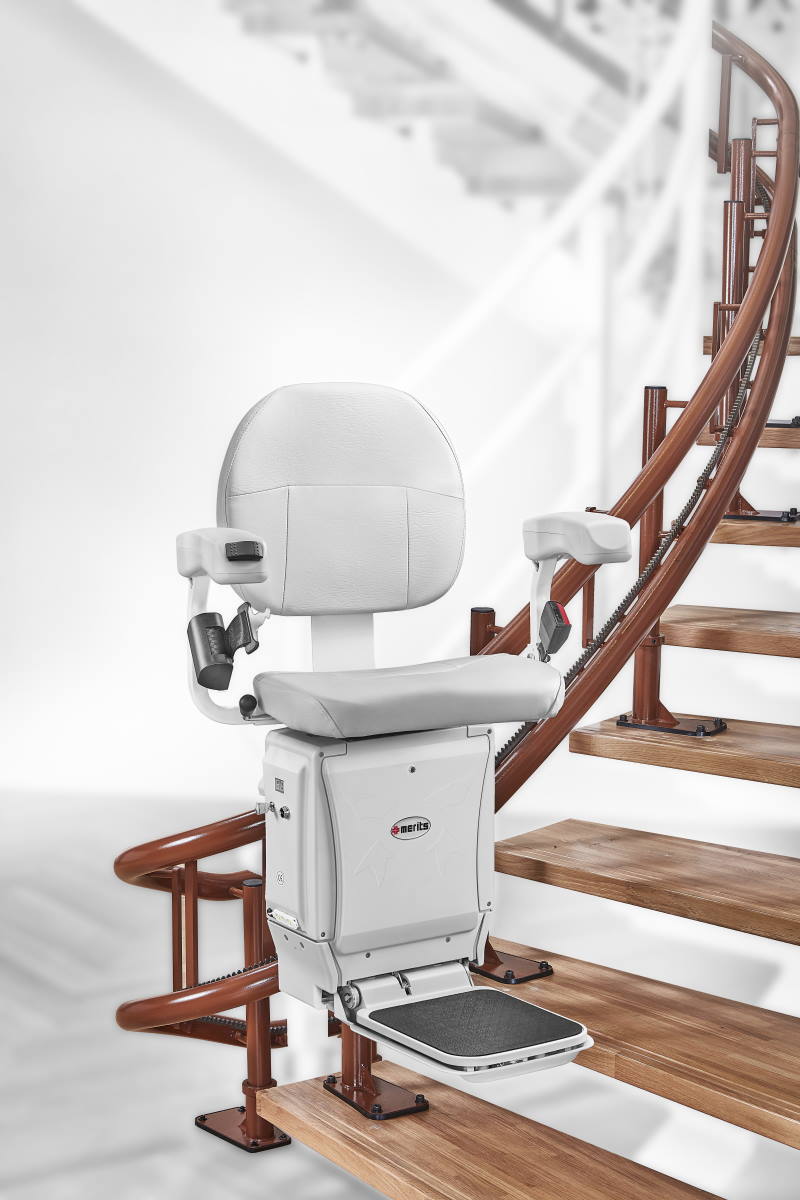

The Affordable Merits E604 Curved Stair Lift

The Merits curved stair lift is an American made system which provides a smooth ride.  With a 265# weight capacity, with a synchronous folding seat and footplate, swivel seat that rotates away from the top of the stairs.  It has a convenient retractable seat-belt, and has a smooth start & stop technology for a comfortable and quiet ride. This lift is affordable and is quicker to produce than most other curved lifts.

  • Standard Safety Features = safety stop sensors, overspeed governor, seat swivel
  • Weight Capacity = 265 pounds
  • Speed = 20 feet/minute
  • Travel Per Charge = 650 steps on a single charge
  • Drive Method = rack & pinion
  • Motor Specifications = 1/2 horsepower, 24VDC
  • Remote call/send controls (standard)
  • Warranty = 5 Year on Motor, 2 Year for Parts
  • Standard Diagnostic display = standard to provide quick and easy service
  • Standard retractable seat belt included
Waukesha affordable curved stair lift
Request a Quote

Affordable curved stair lift options

The Merits curved stair lift offers an affordable stair lift with helpful options including:

  • Key lock to turn the stair lift on/off
  • LED light on the side of the chair to illuminate the stairs as you ride

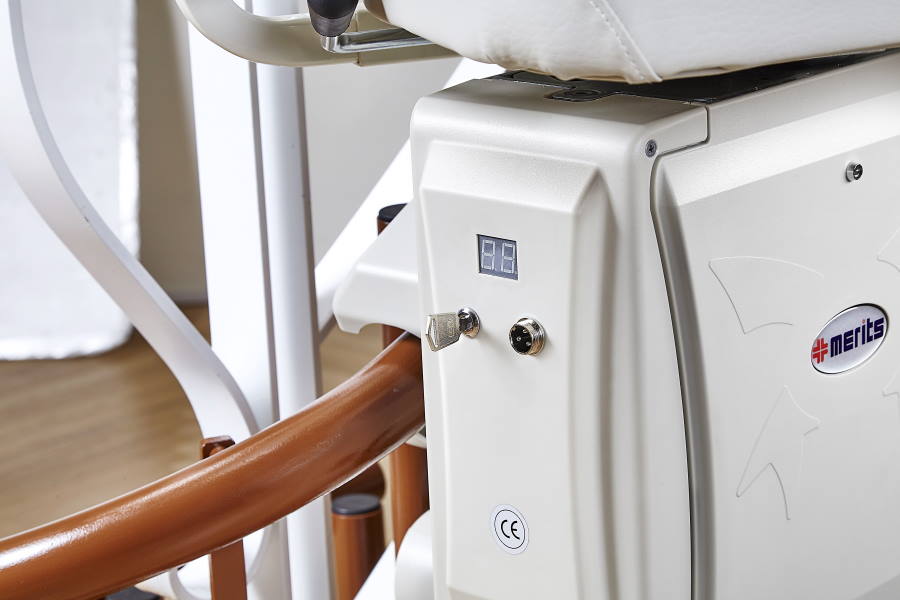

  • Diagnostic display for fast/easy trouble shooting
  • Choice for rail colors  (beige, black, brown)
  • Choice of seat upholstery colors (beige, red, brown)
  • Linked seat/footrest (as you lift up the seat, the footrest automatically folds up)
